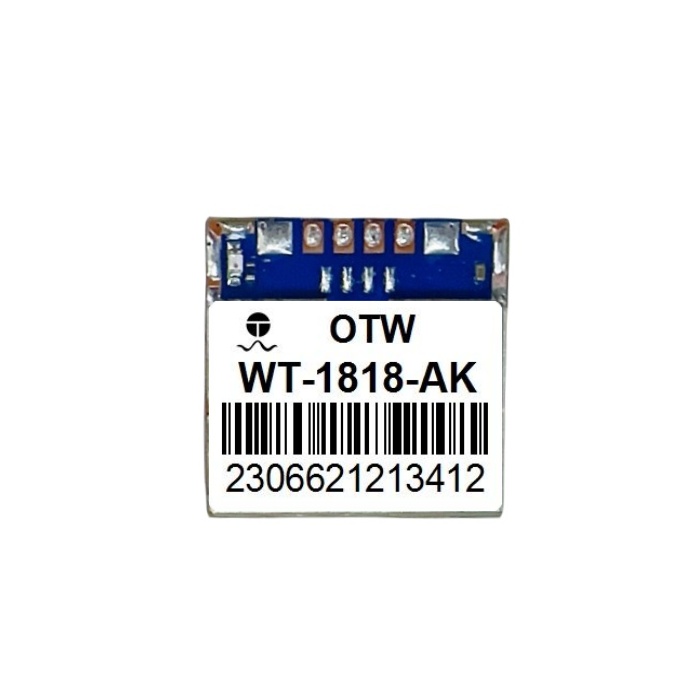

OTW GNSS Module GPS+GLONASS+GALILEO+BDS 5V for Bikes and Drones

Place of Origin : China

Model Number : WT-1818-AK

MOQ : 1

Price : $4.10-4.50

Type : GNSS Module

Country of Origin : CHINA

Brand : OTW

Chipset : XX

Application : Positioning, surveying and mapping, etc

Operating mode : GPS+GLONASS+GALILEO+ BDS

Output Mode : UART+TTL+R232

Baud rate : 4800bps-921600bps,Default9600bps

NMEA messages : RMC,VTG,GGA,GSA,GSV,GLL

Update frequency : 1Hz-10Hz(default 1Hz)

Voltage : 3.6V to 6.5V Typical 5V

Power consumption : 20 mA @5V

Size : 18mm*18mm*4mm

Contact Now

Smart GPS E-Bike Lock Cat/Dog Pet Mini GPS Bicycle Sharing System GPS Modules for Bikes and Bicycles

OTW GNSS Module GPS+GLONASS+GALILEO+BDS 5V for Bikes and Drones

Application:

●Drones, law enforcement cameras

●Hd camera, surveying and mapping

●Handheld device

●Smart wear

●Smart agriculture

●Pet tracking

Product features:

● Positioning module and antenna integrated ● Can receive 3 GNSS synchronously (GPS/BDS/GLN/GAL) ● Ultra-high sensitivity ● Built-in high-gain LNA and SAW for better performance in weak signal situations, even with passive antennas for fast positioning ● High performance, low power consumption ● Support for all satellite augmentation systems

Pin assignment

Product Description:

Module performance
Type	WT-1818-AK
Receiver type	GPS/QZSS BDS GLONASS
Agreement	NMEA-0183 or custom
Available baud rate	4800bps~921600bps(default9600bps)
Channel	56
Sensitivity	Tracking:-162dBm Hot Start:-148dBm Cold Start -148dBm
Cold start	Average 29 seconds
Hot start	Average 1 seconds
Accuracy	2.5m Velocity: 0.1 m/s Timepulse signal: RMS 30 ns
Max Height	18000 m
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration frequency	1Hz -10 Hz
Port
Port	UART/TTL/R232
Physical property
Type	1.25mm 4 pins connector
Size	18mm18mm4mm(+/- 0.5mm)
Power supply
Voltage	3.6V to 6.5V Typical 5V
Power Consume	20mA@5V
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 105℃

Company Profile

Shenzhen Anzewei Technology Co., Ltd. is a scientific and technological company integrating the R & D, production, sales and service of wireless positioning communication products, semi-finished products, finished products and supporting terminals. it has many international well-known enterprises in-depth cooperation resources and a number of elite and senior R & D and design teams.
We always take customer demand as the original strategy, providing wireless and portable high-end consumer electronics solutions, specializing in navigation, positioning, tracking, timing, communications, wireless connections and other professional products, semi-finished products and products, mainly centimeter-level positioning terminals, wearable children's smartwatches, pet track.

Logistics & Payment

FAQ

Q1: Are you a manufacturer? Where is your factory? A1: Yes, we are a manufacturer. Our factory is located in Shenzhen, China. Welcome to our factory. Q2: If i place an order how long will it take to delivery it? A2: IT usually takes about only 7-10days on receipt of payment,depends on the quantity ordered and the stock status. Q3: Are the prices on the list final? A3: No, the price is negotiable. It depends on the quantity of your order. Q4: When can I get the price? A4: Usually we quote within 24 hours of receiving an inquiry. If you urgently need to get a price, please call us so that we can let me quote you as soon as possible. Q5: Can I ask for a sample before placing an order? A5: Yes, we are welcome to order samples to test and check the quality. Mixed samples are acceptable. Q6: Can it be customized? A6: Yes. We support custom requirements. Q7: How can you make our business build a long term good relationship? A7: 1. We maintain good quality and competitive price to ensure that our customers benefit; 2. We respect every customer as our friend and sincerely conduct business and make friends with you, wherever you come. If you would like to know more about our company, please contact us immediately.
